フォックスボロ CP40

In China, Tongtu has been a long-standing supplier of key Foxboro spare parts for overseas customers. We recommend this Foxboro CP40 to all customers. It is a highly reliable control processor module that undergoes underlying self-checking procedures and internal storage read/write verification. It can be directly inserted into the rack and is responsible for performing core tasks such as continuous control and logic interlock, enabling high-speed data interaction with on-site transmitters and actuators.

Characteristics

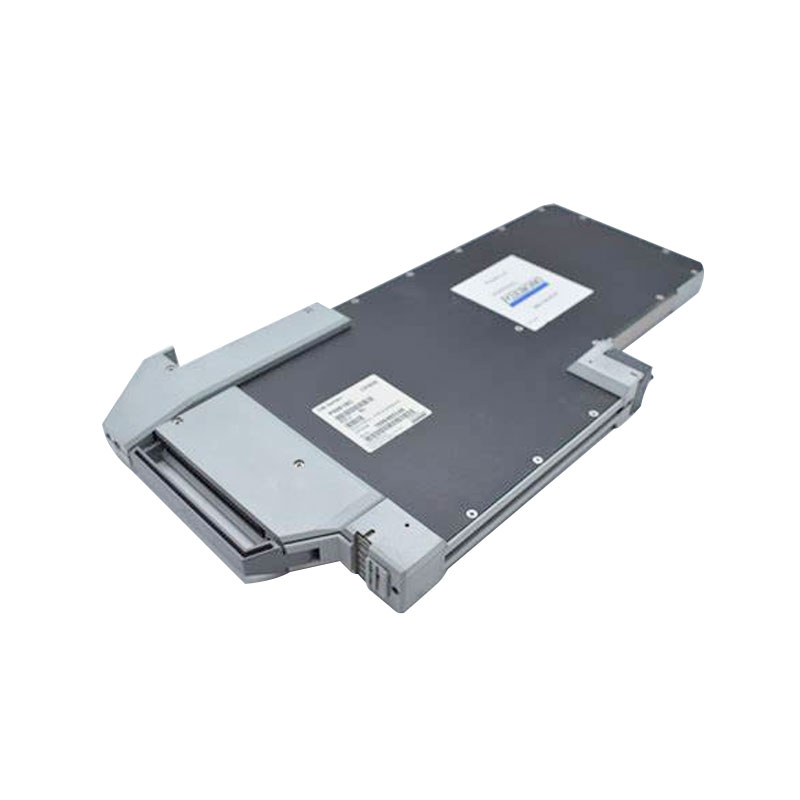

Once you get this Foxboro CP40, you will immediately feel its substantial feel as the core main controller. It is wrapped with an all-metal casing, not only to shield the electromagnetic interference from other high-frequency devices in the cabinet, but also to provide a good heat dissipation body for the processing chips that generate a lot of heat internally. The panel design is very neat. On the left side, there is a row of dense LED status indicator lights, divided into several areas such as operation, fault, and communication. Even if the system goes black screen, just by observing the combination of these lights blinking, you can determine which step the processor is at. In the middle of the panel, there is a standard tamper-proof hardware lock hole, used to prevent unauthorized personnel at the site from randomly plugging in or changing the hardware status. The pins on the back are wide and thick, with an extremely full gold plating layer. This is to ensure extremely low contact resistance during high-throughput data exchange.

Specification

Structure

The core of this Foxboro CP40 is a high-performance microprocessor, surrounded by large-capacity memory chips. There is a read-only memory specifically for storing the system firmware, as well as an anti-power-loss storage memory for storing the control logic and historical data that users can download. Its circuit board is a typical high-reliability multilayer board design. At the power input terminal, a large-power filter network and voltage regulation module are directly integrated, smoothing out the power supply sent from the backplane extremely smoothly. The most meticulous part is its clock generation and synchronization circuits. This part is completely covered by a shielding cover because if this processor is to keep in step with the redundant counterpart, the purity of the clock signal determines whether there will be process fluctuations during the switching. The edge traces of the board have been processed with golden chamfering, making the insertion and removal extremely smooth. Product performance
