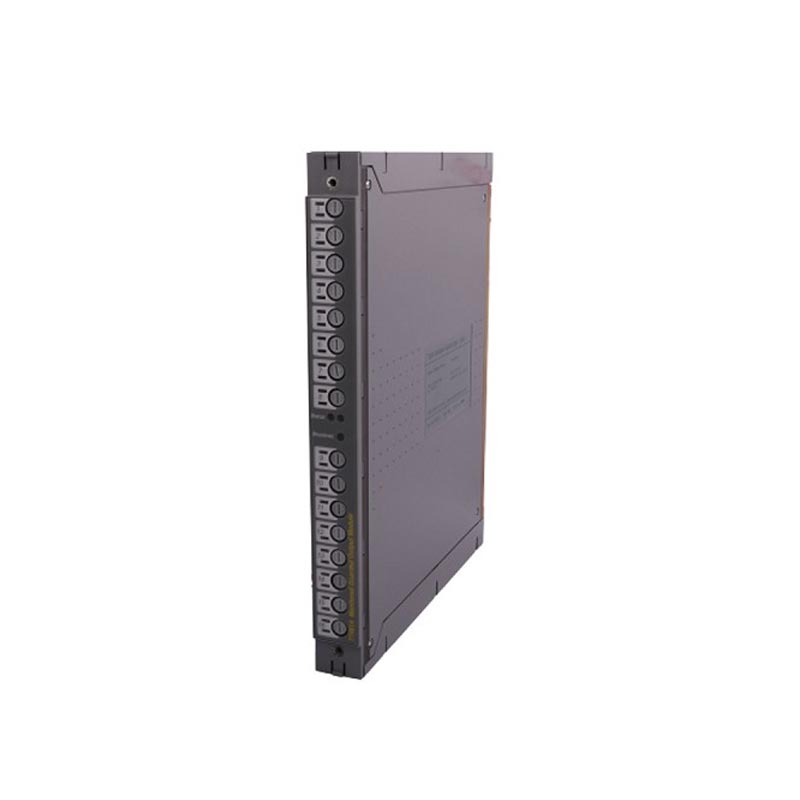

ICS トリプレックス T8431

The core components of the ICS Triplex Trusted system in stock are available. New and old customers are welcome to purchase from Tongtu. The ICS Triplex T8431 is specifically designed to output signals for driving the final actuator. It is a three-channel (TMR) analog output module, whose main function is to accurately convert the digital signals calculated by the controller into 4-20mA current signals, in order to regulate the opening degree of the control valve or control the rotational speed of the turbine. We offer highly competitive prices. If you need it, please come and purchase at any time.

Performance

The ICS Triplex T8431 has extremely high output accuracy. Even if the environmental temperature changes, the temperature drift coefficient can be controlled within an extremely low range, ensuring that the control deviation of the valve opening is very small. Its load capacity is very strong. Even if the on-site wiring resistance is slightly larger or the load is heavy, it can stably output 20mA current without experiencing a decrease in load. The delay in the controller sending instructions to the on-site valve is almost negligible, which is crucial for emergency shutdown scenarios of milliseconds. Its fault safety design is also very excellent. Once the module self-check detects a fault, it will automatically direct the output to the preset safe state (such as power-off reset) to ensure that the system will not cause the valve to open due to a single card failure.

Application scenario

The most typical applications include the control of regulating valves in petrochemical plants, such as the reaction feed control in hydrogenation units and the reflux control in fractionating towers. There are also speed control systems for large gas turbines or steam turbines, used to control the opening of fuel valves and regulate rotational speed. And the blowout preventer control system on offshore drilling platforms. For any scenarios that adopt the ICS Triplex Trusted architecture, have safety requirements up to SIL3 level, and need precise analog output, this ICS Triplex T8431 is the standard execution unit.

Core technology

Technical support and maintenance for the ICS Triplex T8431 high-density digital input module. Daily maintenance and module replacement operations must unconditionally strictly follow the "power-off of the circuit" or "safety isolation" procedures and the work permission system to prevent any safety risks caused by human error. At the hardware level, for its 32 high-density channels, precise measurement of leakage current and insulation impedance must be carried out point by point under both energized and de-energized conditions. At the software level, the input filtering time (0-100ms anti-shake range), channel voting rights, and default safe state, etc. must be strictly set through the configuration tool. At the redundant architecture level, the dual-machine hot standby system requires that the T8431 configuration and firmware versions between the primary and backup racks must be absolutely consistent. Any minor deviation will directly lead to the failure of the redundant switching mechanism.
